Documentation

This document contains all National annex values, which are used in SDF - Basic package

Clause 4.1 Characteristic values, paragraph (1)

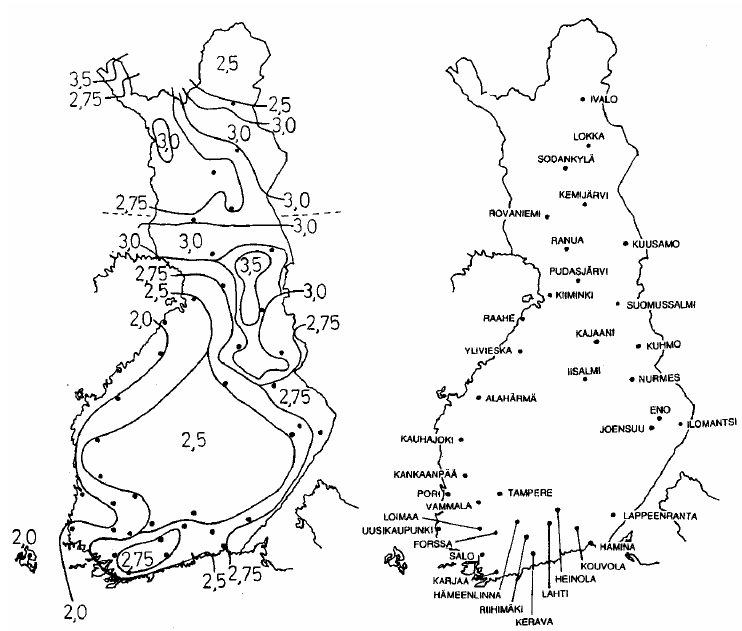

The characteristic values of snow load on the ground sk in Finland should be obtained from the map.

Clause 4.3 Treatment of exceptional snow loads on the ground, paragraph (1)

Exceptional snow load is not considered.

Clause 5.2 Load arrangements, paragraph (7)

Table 1 Values of Ce for different tophographies in Finland
Topography Ce
Windswepta 0,8*
Normalb 1,0
Shelteredc 1,0
a Windswept topography: flat unobstructed areas exposed on all sides
without, or little shelter afforded by terrain, higher construction works or
trees.
b Normal topography: areas where there is no significant removal of snow
by wind on construction work, because of terrain, other construction works
or trees.
c Sheltered topography: areas in which the construction work being
considered is considerably lower than the surrounding terrain or
surrounded by high trees and/or surrounded by higher construction works.
*) However, for roofs with the smaller horizontal dimension more than 50 meters,
the factor Ce is 1,0

Clause 5.2 Load arrangements, paragraph (8)

Ct can lesser than 1,0. The snow load sk shall however always be at least 0,5 kN/m2

Clause 5.3.3 Pitched roofs, paragraph (4)

Standard drifted load arrangement is used.

Clause 5.3.4 Multi-span roofs, paragraph (3)

Standard drifted snow load is used.

Clause 5.3.4 Multi-span roofs, paragraph (4)

If α ≥ 60°, the coefficient μ2 = 1,6

Clause 5.3.5 Cylindrical roofs, paragraph (1)

μ3,max = 2,0

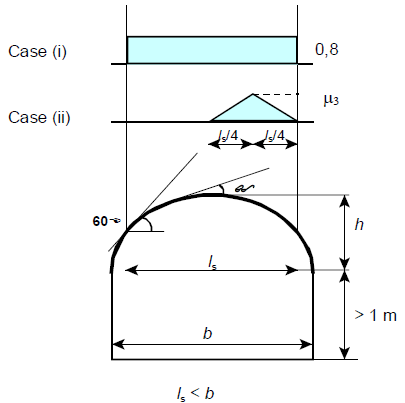

Clause 5.3.5 Cylindrical roofs, paragraph (3)

Special drifted load arrangement is considered.

Clause 5.3.6 Roof abutting and close to taller construction works, paragraph (1)

0,8 ≤ μw ≤ 2,5 if the area of the lower roof is ≥ 6 m2
0,8 ≤ μw ≤ 1,5 if the area of the lower roof is = 2 m2
μw = 0,8 if the area of the lower roof is ≥ 1 m2
Intermediate upper values for factor μw can be obtained by linear interpolation when the area of the lower roof is < 6 m2.
2 m ≤ ls ≤ 6 m

Clause 5.3.6 Roof abutting and close to taller construction works, paragraph (3)

Annex B is not applied in Finland.

Clause 6.2 Drifting at projections and obstructions, paragraph (2)

2 m ≤ ls ≤ 6 m
Annex B is not applied in the Czech Republic.

Clause 6.3 Snow overhanging the edge of a roof, paragraph (1)

This clause does not apply in Finland

Clause 6.3 Snow overhanging the edge of a roof, paragraph (2)

This clause does not apply in Finland
