size=150Bitmap comparer/size

Bitmap comparer is used to compare test template and current output.

Bitmap comparer in Design Forms Builder:

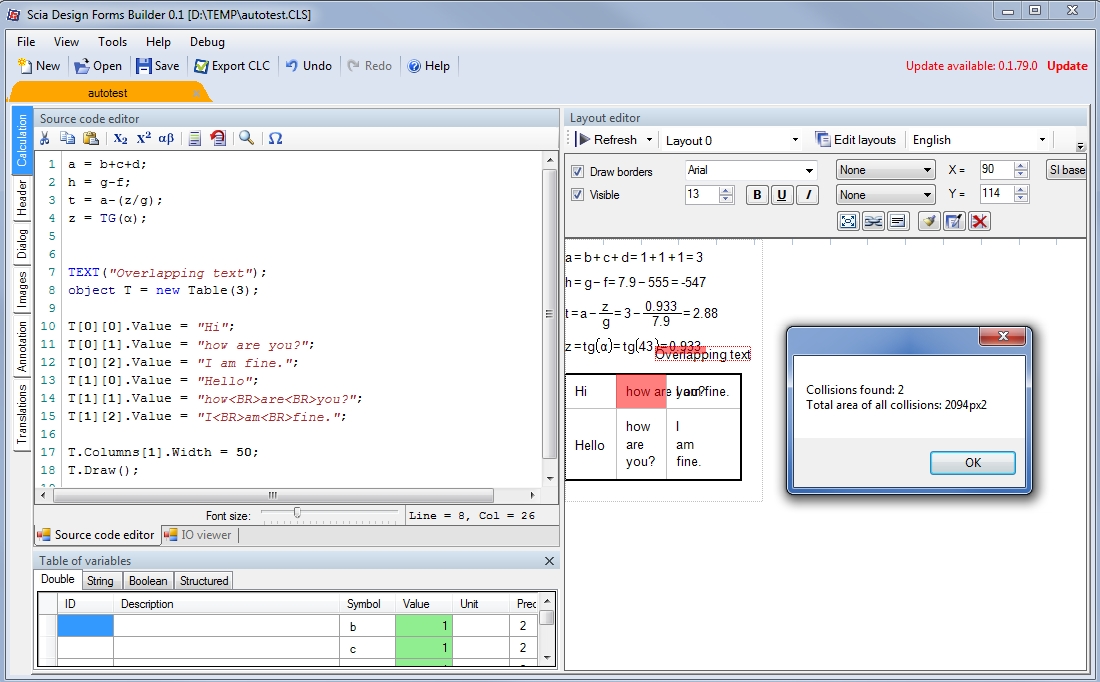

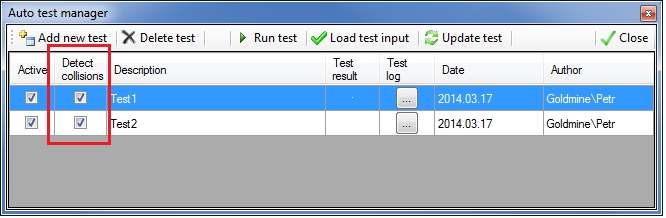

1) Open Auto test manager
2) Select graphical test
3) Click on "BMP compare" button.

Bitmap comparer in Calculation tester:
1) Run CLC tests
2) Select node with (executed) graphical test in the tree on the left side of the window
3) Click "Bitmap comparer" button in tool bar
:!: The button is disabled until you select node with executed graphical test in the tree view.

ubBitmap comparer support two views:/b/u

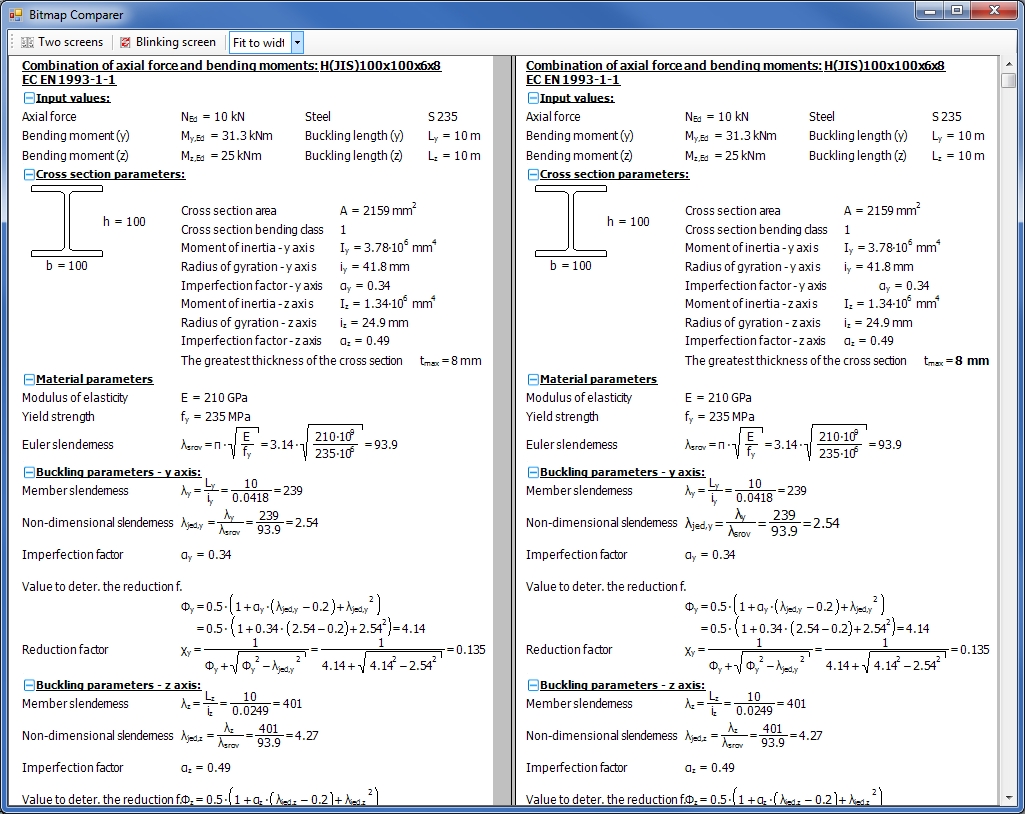

buTwo bitmaps side-by-side:/u/b
Test template output is on the left side, current CLC output is on the right side.
attachment=1
/attachment

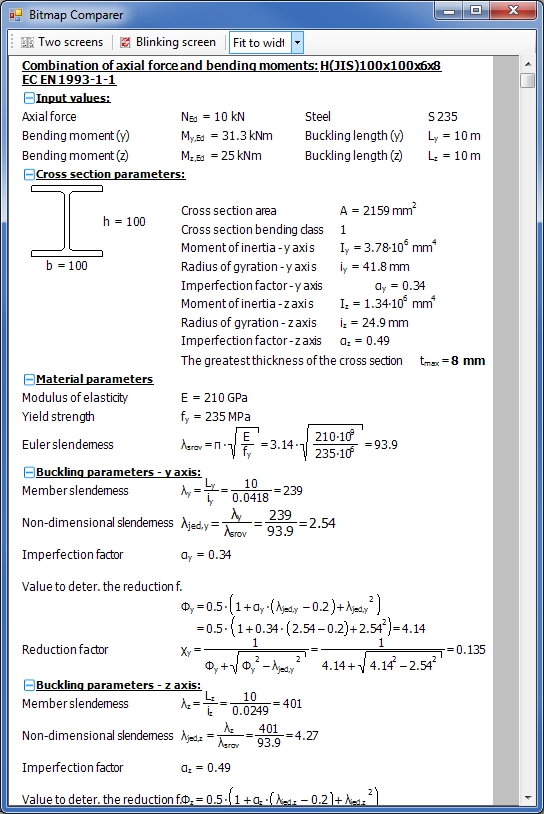

buBlinking:/u/b
Test template and current CLC output is blinking. This mode allows easily identify output differences.
attachment=0
/attachment
