Version: 0.1.76+
There is a new header & footer editor in DesignForms User.
New editor allows user to define canvas-based content = TextBlocks and Images can be placed anywhere, without limitation to text lines.
Header & Footer is bound to Project properties. User is allowed to use active fields (like Project description, Author, ...) in Header & Footer. Value of these fields is automatically read from url=http://designforms.net/forum/viewtopic.php?f=17&t=103Project properties/url.
ubBasic actions:/b/u
list
*Insert new text block - click left mouse button anywhere in the window and type the text/*:m
*Insert active field - select required field from the <X> list in the toolbar. Active field is automatically updated by the content defined inurl=http://designforms.net/forum/viewtopic.php?f=17&t=103Project properties/url. If the property of Project properties is not defined (is empty), "???" string will be inserted./*:m
*Insert new image - Click "Insert image" button in the toolbar/*:m
*Edit text block - double click on the text block, type new text and press "Enter key"/*:m
*Delete text block - double click on the text block, delete all the text and press "Enter key"/*:m
*Delete image - Select the image by left click and press "Delete key"
/*:m
*Move component (textblock/image) - select component by left mouse click. Drag&drop component to new place./*:m
*Align components - select all component which should be aligned. Click component alignment button in the toolbar to align components. The first component defines the coordinate at which the rest will be aligned./*:m/list:u

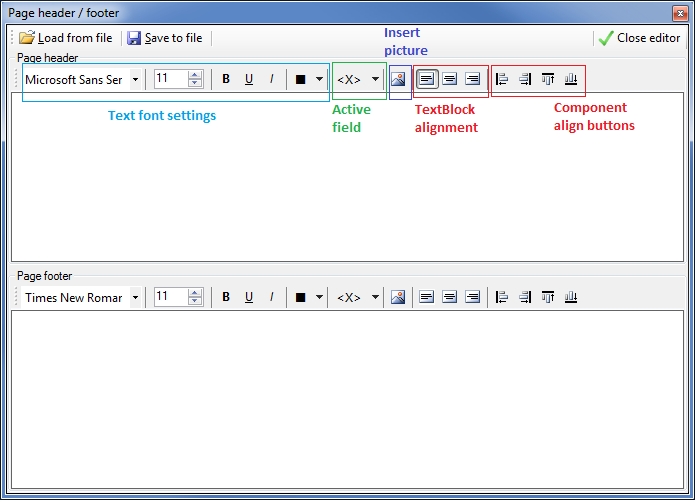

uHeader&Footer editor:/u
attachment=0
- HF_Editor.jpg (88.21 KiB) Viewed 5017 times
